Features
● Fully programmable clock and controller events
● Settable pulses per quarter note (24/48 PPQ)
● Supports MIDI over Bluetooth LE
● Two synchronized, independent MIDI outs
● Two synchronized, independent 5V sync outs
● Two robust, silent, soft-action switches
● Two TRS jacks for four additional external switches
● Touch screen interface
● USB powered
● Hackable open source design and code
Example presets
● Tap BPM
● Transport control
● Polyrhythmic clocks
● Forced synchronization every N bars
● Kick/snare controller

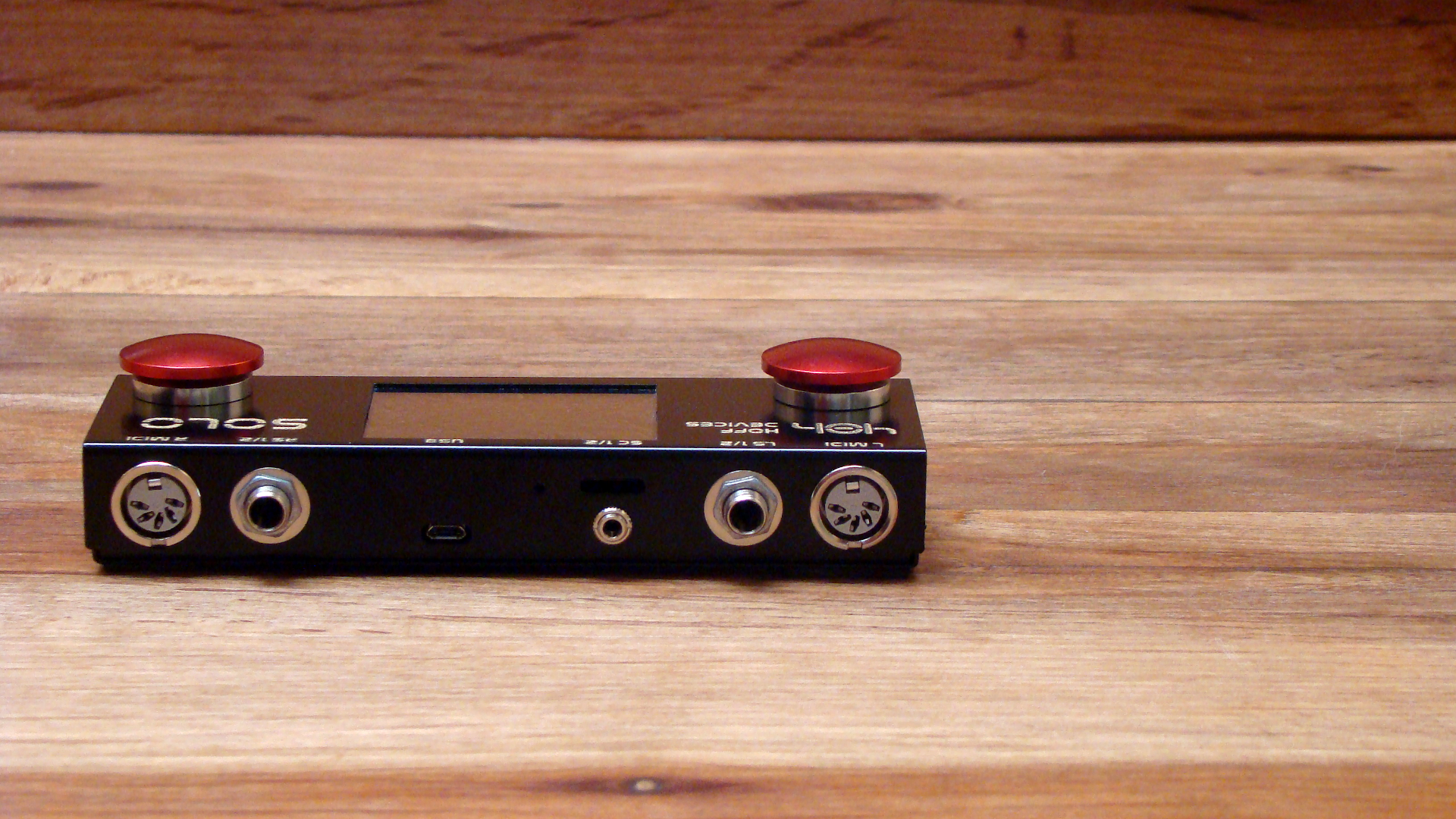

Specifications
● Power: USB B micro
● Touch screen: resistive full colour LCD
● MIDI In/Out: USB, Bluetooth LE
● MIDI outs: DIN 5 female (x2)
● 5V sync outs: 1/8" TRS female jack
● Extra switches: 1/4" TRS female jack (x2)
● Dimensions (WxDxH): 169mm x 59mm x 35mm
● Accessories: USB A to USB B micro cable
● Options: Hoff Duo footswtiches (sold seperately)
Bluetooth LE
Video
Kaosillator forced sync
Video
Tap BPM
Video
Transport control
Video
Preset programming using SYSEX
Video
Get in touch
Please send email to enquire about stock and pricing
